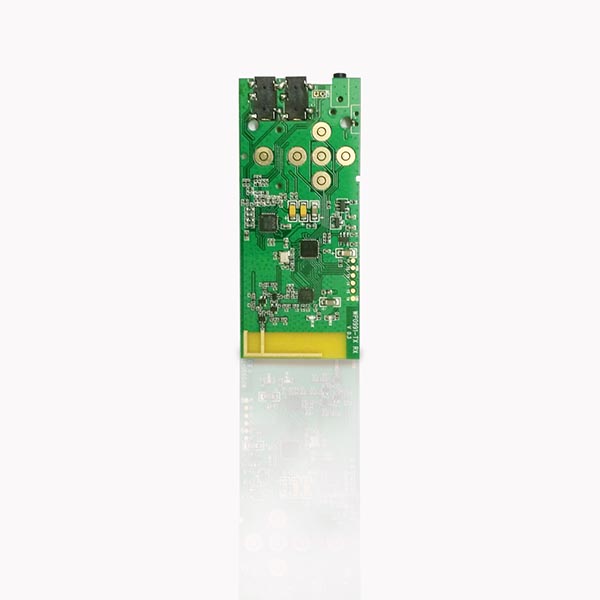

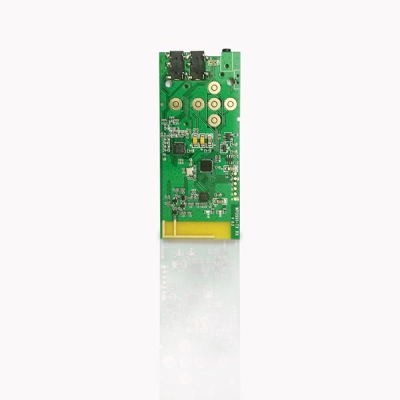

2.4G無線導游講解

系統特點

1. 工作頻段：ISM 2.4GHz自由頻段。

2. 預置信道數14個，可單發單收和一發多收。

3. 每套系統都有唯一的 ID號，多套同時使用不串音

4. 傳輸距離空曠地帶120米以上。

5. 帶耳機功放和數字音量調節。

6. 帶音頻接口接口，可放音樂。

7. 低耗電量適合移動式產品應用。

8. 信道質量不好，誤碼率高時自動靜音。

9. 組團和解團方便簡單

導游機

麥克風/音頻：

導游機支持兩種信號輸入：麥客風和外置音頻，可以短按“麥克風/音頻”選擇輸入的信號源。麥克風輸入模式下，藍燈每2秒鐘快閃一次；外置音頻輸入模式下，指示燈藍燈每2秒鐘快閃兩次。

配對游客機（組團）：）

長按“配對（組團）”鍵3秒鐘，導游機指示燈紅藍交替閃爍進入組團模式，再長按需要組團游客機的“配對（組團）”鍵3秒鐘，等待游客機的藍燈常亮?xí)r表示組團成功，再短按“配對（組團）”鍵，均可退出組團模式。

  注：

1）導游機與游客機第一次使用時需要配對（組團）組團只需要一次，以后開機即可以使用

2）增加游客機也同上操作

3）游客機的組團模式指示燈：紅藍交替閃爍

復制導游機：

長按《需復制導游機》的“復制導游機”按鍵3秒鐘，指示燈的藍燈快速閃爍，表示已進入復制模式；再長按《已組團導游機》的“配對（組團）”鍵3秒鐘，指示燈紅藍交替閃爍， 當《需復制導游機》的藍燈常亮?xí)r即復制成功，此時關機即可。

注：一旦組團成功，導游機的信息與游客機的信息同步，可以通過復制的方式增加導游機以備用

解除配對（散團）：

長按“解除配對（散團）”鍵3秒鐘，導游機指示燈紅藍交替閃，此時關機即可。

靜音： 短按“靜音”鍵，可以屏蔽導游機的聲音傳到游客機，再短按即可解除。靜音模式下，藍燈亮2秒滅0.3秒，否則藍燈滅2秒亮0.3秒

游客機

游客機開機后，藍燈快速閃爍，尋找組團過的導游機；藍燈慢閃表示已與導游機連接成功。當游客機與導游機連接成功后再失去連接，會在30秒后給出提示音，按任鍵可以關掉提示音。

音量加/減：

短按音量加減鍵，可以調節耳機音量，共有15個等級可調；長按音量加減鍵有連續音量加減的功能，間隔800ms左右

靜音：

短按“靜音”鍵，可以屏蔽游客機的耳機輸出，再短按即可解除。靜音模式下，指示燈藍燈藍燈亮2秒滅0.3秒，否則藍燈滅2秒亮0.3秒

其它指標：

導游機續航時間：8個小時

游客機續航時間：16個小時

充電時間：2個小時

充電指示燈：充電時紅燈長亮，電池充滿時紅燈熄滅

低電提示：當導游機低電時，紅燈每隔2秒鐘閃一次

機器尺寸：長85mm 寬42mm

2.4G Wireless Tour Guide

System characteristics

1. Working band: ISM 2.4 GHz free band.

2. The number of preset channels is 14, which can receive one single transmission and one multiple transmission.

3. Each system has a unique ID number, and multiple systems use non-crosstalk at the same time.

4. The transmission distance is more than 120 meters from the open area.

5. Power Amplifier with Headphones and Digital Volume Adjustment.

6. With audio interface, music can be played.

7. Low power consumption is suitable for mobile product applications.

8. Automatic mute when channel quality is poor and bit error rate is high.

9. Easy to organize and reconcile

Tour guide

Microphone/Audio:

Tourist guides support two kinds of signal input: Maikefeng and external audio. They can select the input signal source by pressing "microphone/audio" shortly. In microphone input mode, the blue light flashes every 2 seconds; in external audio input mode, the blue light flashes twice every 2 seconds.

Matched Tourist Aircraft (Group):)

Long press the "pair (group)" button for 3 seconds, guide lights flashing red and blue alternately into the group mode, and long press the "pair (group)" button for 3 seconds, waiting for the blue light of the tourist plane to be always on to indicate the success of the group, and short press the "pair (group)" button, all can exit the group mode.

Note:

1) Tourist guides and tourists need to pair up (group) for the first time, only once, and then boot up.

2) Increase the number of tourist flights

3) Tourist Aircraft Group Mode Indicator: Red and Blue Alternate Flash

Duplicate tour guides:

Press the button of "Duplicate Tourist Guide" for 3 seconds, and the blue light of the indicator flashes fast, indicating that it has entered the duplicate mode. Press the key of "Paired Tourist Guide" for 3 seconds, and the indicator flashes red and blue alternately. When the blue light of "Duplicate Tourist Guide" is always on, the duplicate is successful, and then shut down.

Note: Once the group is successful, the information of tour guides is synchronized with the information of tourists'planes, and the tour guides can be added to the standby by replication.

Unpairing (loose group):

Press the key "Unpair (loose group)" for 3 seconds, and the guide light flashes red and blue alternately, then shut down.

Mute: Just press the "mute" button, which can shield the sound of the tour guide to the tourist plane, and then press it to remove it. In silent mode, the blue light is on for 2 seconds and off for 0.3 seconds, otherwise the blue light is off for 2 seconds and on for 0.3 seconds.

Tourist machine

When the tourist plane starts, the blue light flickers quickly, looking for the tour guides that have been organized; the blue light flickers slowly, indicating that the connection with the tour guides has been successful. When the connection between the tourist plane and the guide plane is successful and then loses the connection, the prompt sound will be given after 30 seconds, and the prompt sound can be turned off by pressing any key.

Volume add/subtract:

Short press volume add and subtract key can adjust the volume of headphones, a total of 15 levels can be adjusted; long press volume add and subtract key has the function of continuous volume add and subtract, the interval is about 800ms.

Mute:

Short press "mute" button, you can shield the headphone output of the tourist machine, and then a short press can be lifted. In silent mode, the blue light of the indicator light turns on for 2 seconds and off for 0.3 seconds, otherwise the blue light turns off for 2 seconds and on for 0.3 seconds.

Other indicators:

Tour guide duration: 8 hours

Tourist flight duration: 16 hours

Charging time: 2 hours

Charging Indicator Lamp: When charging, the red lamp will be on, and when the battery is full, the red lamp will be off.

Low Electricity Tip: When the tour guide is low, the red light flashes every 2 seconds.

Machine size: 85 mm long and 42 mm wide

2.4G無線導游講解

系統特點

1. 工作頻段：ISM 2.4GHz自由頻段。

2. 預置信道數14個，可單發單收和一發多收。

3. 每套系統都有唯一的 ID號，多套同時使用不串音

4. 傳輸距離空曠地帶120米以上。

5. 帶耳機功放和數字音量調節。

6. 帶音頻接口接口，可放音樂。

7. 低耗電量適合移動式產品應用。

8. 信道質量不好，誤碼率高時自動靜音。

9. 組團和解團方便簡單

導游機

麥克風/音頻：

導游機支持兩種信號輸入：麥客風和外置音頻，可以短按“麥克風/音頻”選擇輸入的信號源。麥克風輸入模式下，藍燈每2秒鐘快閃一次；外置音頻輸入模式下，指示燈藍燈每2秒鐘快閃兩次。

配對游客機（組團）：）

長按“配對（組團）”鍵3秒鐘，導游機指示燈紅藍交替閃爍進入組團模式，再長按需要組團游客機的“配對（組團）”鍵3秒鐘，等待游客機的藍燈常亮?xí)r表示組團成功，再短按“配對（組團）”鍵，均可退出組團模式。

  注：

1）導游機與游客機第一次使用時需要配對（組團）組團只需要一次，以后開機即可以使用

2）增加游客機也同上操作

3）游客機的組團模式指示燈：紅藍交替閃爍

復制導游機：

長按《需復制導游機》的“復制導游機”按鍵3秒鐘，指示燈的藍燈快速閃爍，表示已進入復制模式；再長按《已組團導游機》的“配對（組團）”鍵3秒鐘，指示燈紅藍交替閃爍， 當《需復制導游機》的藍燈常亮?xí)r即復制成功，此時關機即可。

注：一旦組團成功，導游機的信息與游客機的信息同步，可以通過復制的方式增加導游機以備用

解除配對（散團）：

長按“解除配對（散團）”鍵3秒鐘，導游機指示燈紅藍交替閃，此時關機即可。

靜音： 短按“靜音”鍵，可以屏蔽導游機的聲音傳到游客機，再短按即可解除。靜音模式下，藍燈亮2秒滅0.3秒，否則藍燈滅2秒亮0.3秒

游客機

游客機開機后，藍燈快速閃爍，尋找組團過的導游機；藍燈慢閃表示已與導游機連接成功。當游客機與導游機連接成功后再失去連接，會在30秒后給出提示音，按任鍵可以關掉提示音。

音量加/減：

短按音量加減鍵，可以調節耳機音量，共有15個等級可調；長按音量加減鍵有連續音量加減的功能，間隔800ms左右

靜音：

短按“靜音”鍵，可以屏蔽游客機的耳機輸出，再短按即可解除。靜音模式下，指示燈藍燈藍燈亮2秒滅0.3秒，否則藍燈滅2秒亮0.3秒

其它指標：

導游機續航時間：8個小時

游客機續航時間：16個小時

充電時間：2個小時

充電指示燈：充電時紅燈長亮，電池充滿時紅燈熄滅

低電提示：當導游機低電時，紅燈每隔2秒鐘閃一次

機器尺寸：長85mm 寬42mm

2.4G Wireless Tour Guide

System characteristics

1. Working band: ISM 2.4 GHz free band.

2. The number of preset channels is 14, which can receive one single transmission and one multiple transmission.

3. Each system has a unique ID number, and multiple systems use non-crosstalk at the same time.

4. The transmission distance is more than 120 meters from the open area.

5. Power Amplifier with Headphones and Digital Volume Adjustment.

6. With audio interface, music can be played.

7. Low power consumption is suitable for mobile product applications.

8. Automatic mute when channel quality is poor and bit error rate is high.

9. Easy to organize and reconcile

Tour guide

Microphone/Audio:

Tourist guides support two kinds of signal input: Maikefeng and external audio. They can select the input signal source by pressing "microphone/audio" shortly. In microphone input mode, the blue light flashes every 2 seconds; in external audio input mode, the blue light flashes twice every 2 seconds.

Matched Tourist Aircraft (Group):)

Long press the "pair (group)" button for 3 seconds, guide lights flashing red and blue alternately into the group mode, and long press the "pair (group)" button for 3 seconds, waiting for the blue light of the tourist plane to be always on to indicate the success of the group, and short press the "pair (group)" button, all can exit the group mode.

Note:

1) Tourist guides and tourists need to pair up (group) for the first time, only once, and then boot up.

2) Increase the number of tourist flights

3) Tourist Aircraft Group Mode Indicator: Red and Blue Alternate Flash

Duplicate tour guides:

Press the button of "Duplicate Tourist Guide" for 3 seconds, and the blue light of the indicator flashes fast, indicating that it has entered the duplicate mode. Press the key of "Paired Tourist Guide" for 3 seconds, and the indicator flashes red and blue alternately. When the blue light of "Duplicate Tourist Guide" is always on, the duplicate is successful, and then shut down.

Note: Once the group is successful, the information of tour guides is synchronized with the information of tourists'planes, and the tour guides can be added to the standby by replication.

Unpairing (loose group):

Press the key "Unpair (loose group)" for 3 seconds, and the guide light flashes red and blue alternately, then shut down.

Mute: Just press the "mute" button, which can shield the sound of the tour guide to the tourist plane, and then press it to remove it. In silent mode, the blue light is on for 2 seconds and off for 0.3 seconds, otherwise the blue light is off for 2 seconds and on for 0.3 seconds.

Tourist machine

When the tourist plane starts, the blue light flickers quickly, looking for the tour guides that have been organized; the blue light flickers slowly, indicating that the connection with the tour guides has been successful. When the connection between the tourist plane and the guide plane is successful and then loses the connection, the prompt sound will be given after 30 seconds, and the prompt sound can be turned off by pressing any key.

Volume add/subtract:

Short press volume add and subtract key can adjust the volume of headphones, a total of 15 levels can be adjusted; long press volume add and subtract key has the function of continuous volume add and subtract, the interval is about 800ms.

Mute:

Short press "mute" button, you can shield the headphone output of the tourist machine, and then a short press can be lifted. In silent mode, the blue light of the indicator light turns on for 2 seconds and off for 0.3 seconds, otherwise the blue light turns off for 2 seconds and on for 0.3 seconds.

Other indicators:

Tour guide duration: 8 hours

Tourist flight duration: 16 hours

Charging time: 2 hours

Charging Indicator Lamp: When charging, the red lamp will be on, and when the battery is full, the red lamp will be off.

Low Electricity Tip: When the tour guide is low, the red light flashes every 2 seconds.

Machine size: 85 mm long and 42 mm wide
